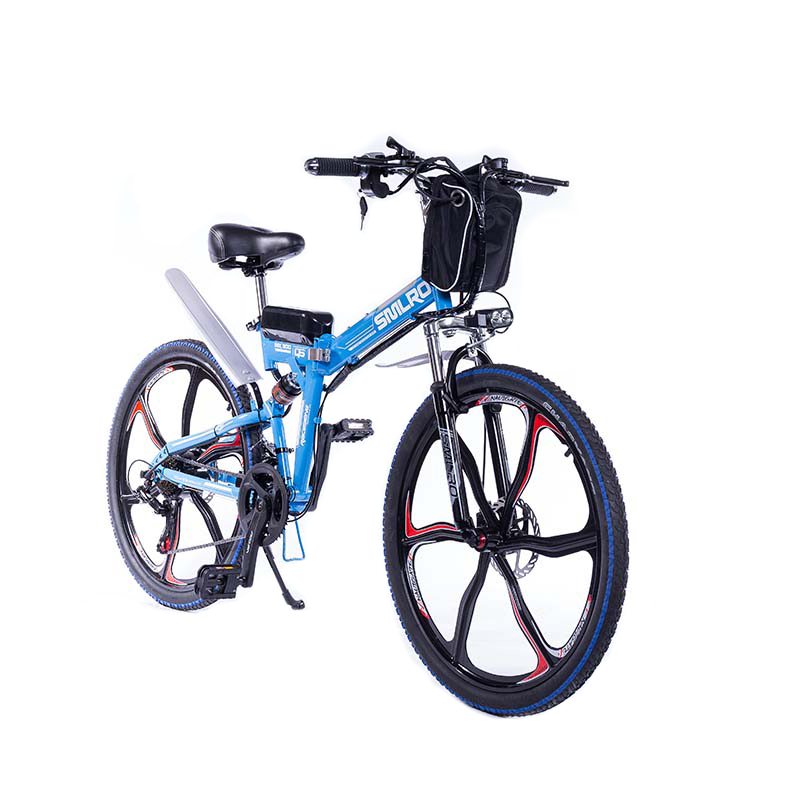

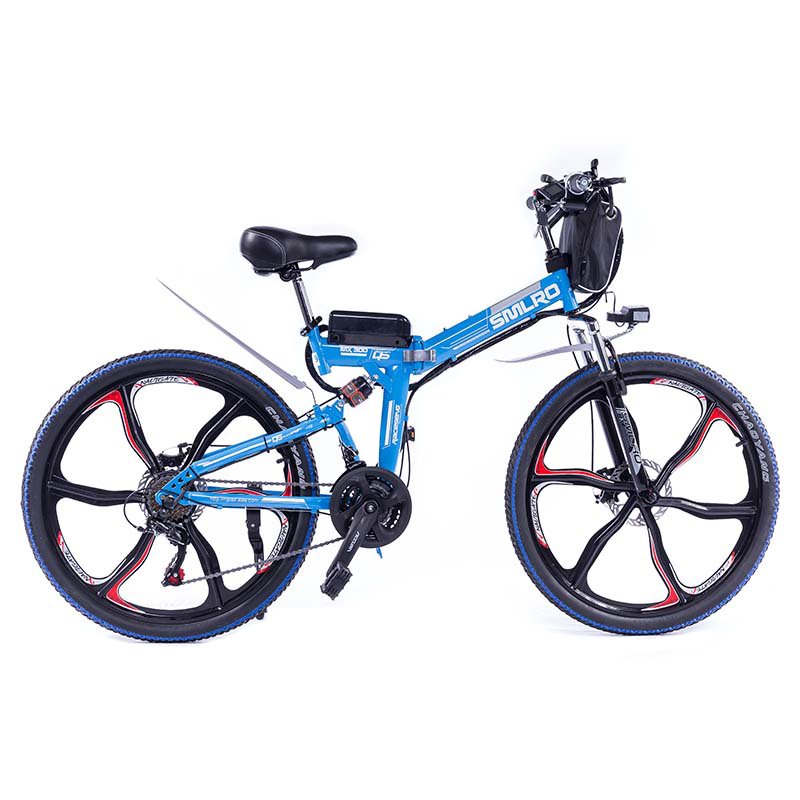

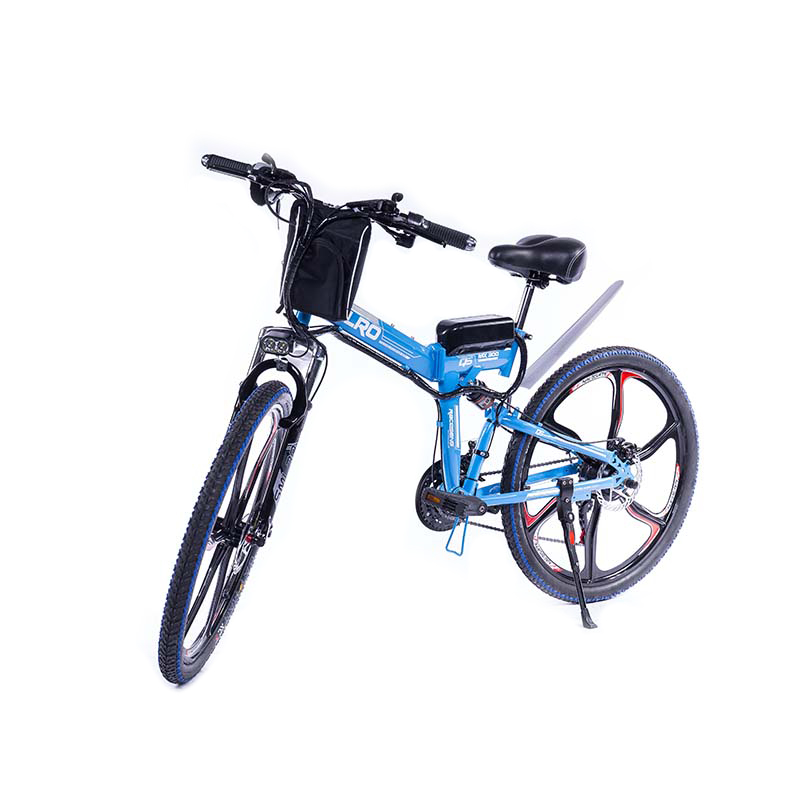

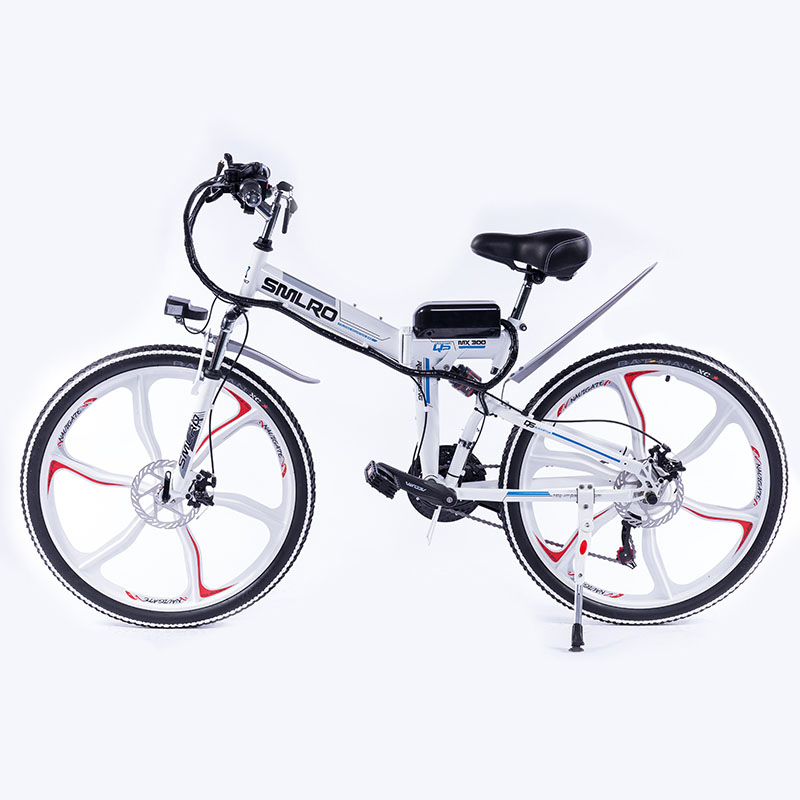

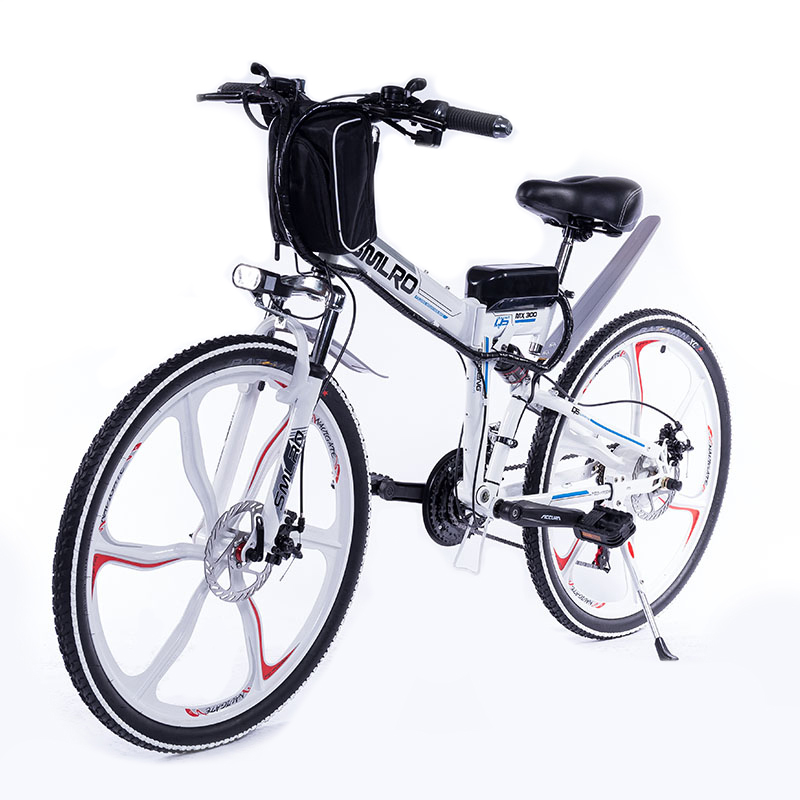

MX300YTL

SMLRO Ebike Product Specifications

Category: Electric mountain bike

Model: MX300YTL

Color: White, black, blue, red

Frame: High carbon steel foldable frame

Front fork: SMLRO Steel suspension fork

Rear shock: MTB rear shock absorber

Driving modes : Pure electric(5 shifts), Electric assist(5 shifts), Pure human riding

Battery: Lithium-ion battery(CE, ROHS, UL, PSE, KC, etc)

Capacity: 48V 10Ah

Range in pure electric mode: 45 km

Range in electric assist mode: 65 km

Charging methods: Charge directly or take the battery out for charging

Charger: Local standard input 100~240V AC, output 54.6V 2A, overvoltage, overcurrent, short circuit protection

Charging time: 4-5 hours

Motor: Rear drive 48V 350W high speed, brushless, toothed, low resistance and low noise motor

Controller: Intelligent sine wave integrated IC control chip

Accelerator: Rotatable throttle grip/Pedal assist

Headlight & Horn: Integrated LED headlight & horn

Meter: LCD display control instrument

Display function: MPH, miles, electricity, shift, error code, etc

Cruise control: 4 levels cruise control

Protection level: IP54

Max speed: 35 km/h

Gears: 21 speed

Shifter levers: Shimano SL-TX30

Front derailleur: Shimano FD-TZ31

Rear derailleur: Shimano RD-TZ500

Cassette: Shimano MF-TZ500, 14-28T, 7-speed

Crankset: Accura steel 24-34-42T

Chain: E-bike optimized, 21-speed

Rims : 26" magnesium alloy intergrated rims

Tires : KENDA 26*1.95" MTB tires

Brake levers: Aluminum alloy, cut off the power to the motor when braking

Brakes: Mechanical disc brakes

Handlebar: High carbon steel

Saddle: Body geometry comfortable sponge saddle

Pedals: Foldable pedals

Accessories: Kickstand, fenders, tools

Max load: 150kg

Net weight: 25kg

Gross weight: 31kg

Carton size: 98*34*76cm
