EV2

  • Frame: 6061 Aluminium alloy
  • Wheels: 14
  • Battery: Removable lithium-ion battery
  • Gears: Single speed
  • Product description:
  • INQUIRY

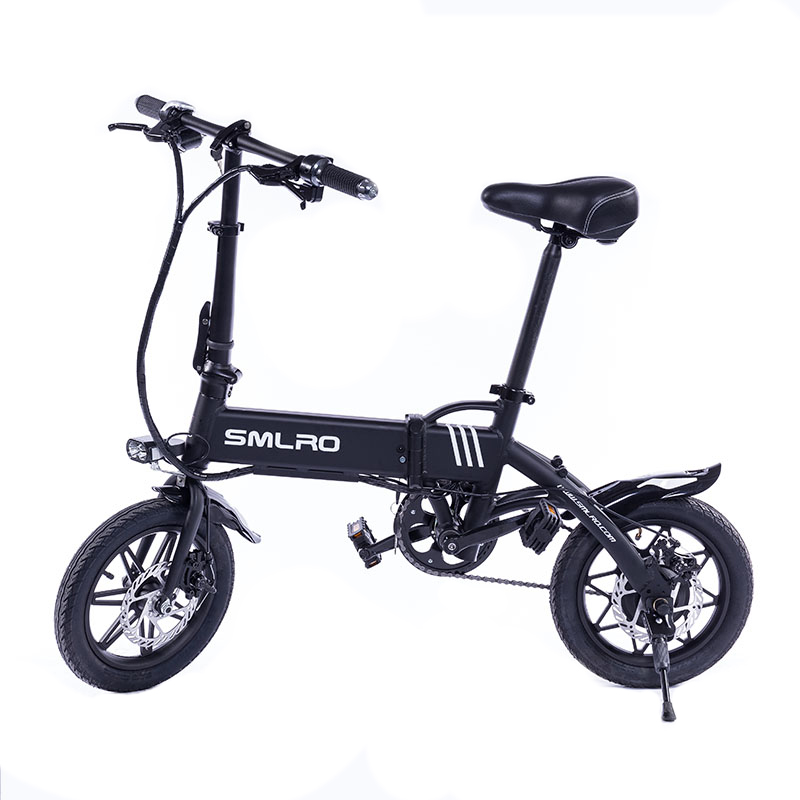

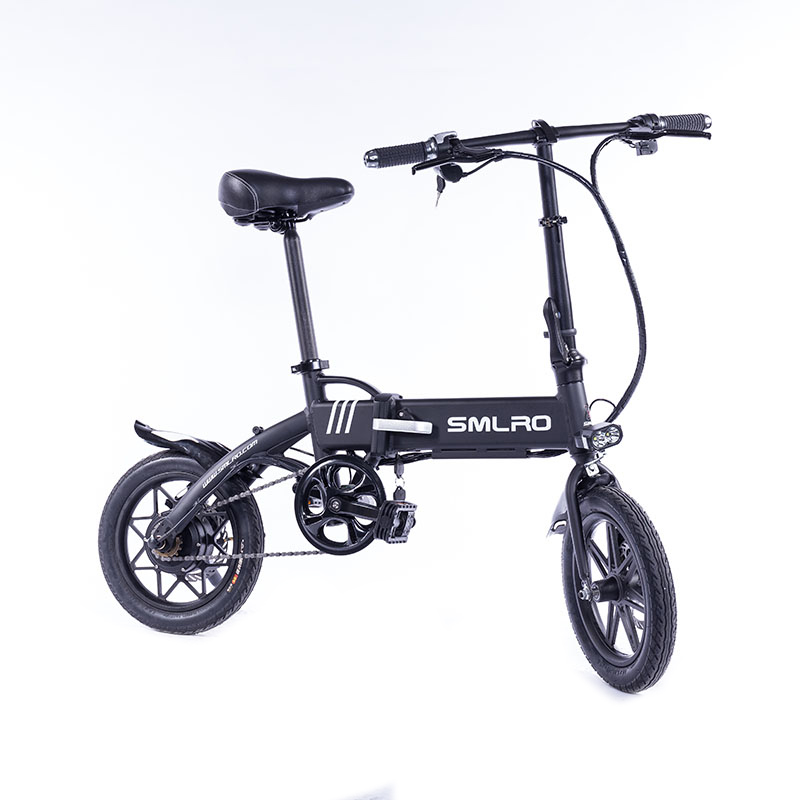

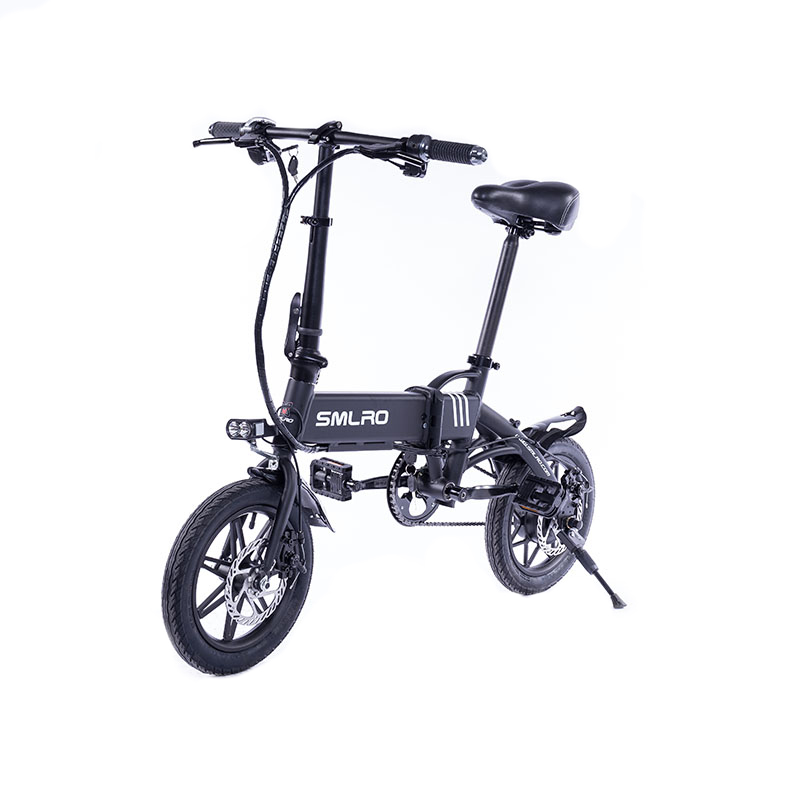

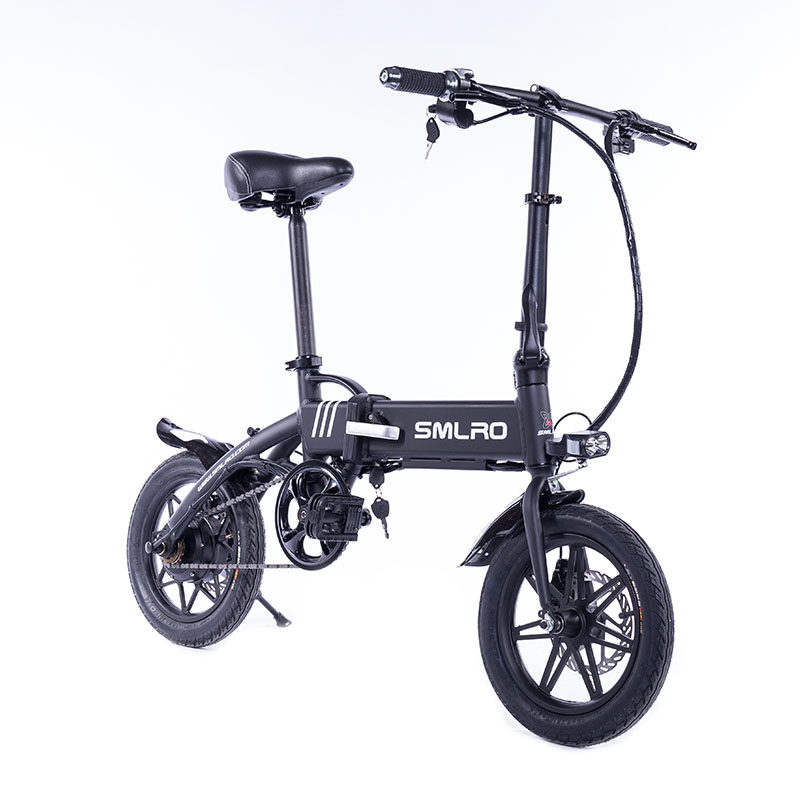

SMLRO Ebike Product Specifications

Category: Electric city bike

Model: EV2

Colors: White, black, OEM

Frame: Foldable 6061 aluminum alloy

Driving modes : Pure electric(3 shifts), Electric assist(3 shifts), Pure human riding

Battery: Removable lithium-ion battery(CE, ROHS, UL, PSE, KC, etc)36V 8Ah

Range in electric mode: 35 km

Range in electric assist mode: 50 km (MODE 1)

Charging methods: Charge directly or take the battery out for charging

Charger: Local standard input 100~240V AC, output 42V 2A, overvoltage, overcurrent, short circuit protection

Charging time: 3-5 hours

Motor: Rear drive 36V 250W high speed,brushless,toothed,low resistance and low noise motor

Max torque: 45 N·m

Controller: Intelligent sine wave integrated IC control chip

Accelerator: Rotatable throttle grip/Pedal assist

Headlight & Horn: Integrated LED headlight & horn

Meter: LCD display control instrument

Cruise control: 3 levels cruise control

Protection level: IP54

Max speed: 25 km/h

Gear: Single speed


Rims : 14" magnesium alloy integrated rims

Tires: Chaoyang 14*1.95"

Brake levers: Aluminum alloy, cut off the power to the motor when braking

Brakes: Mechanical disc brakes

Front fork: High carbon steel hard fork

Stem: Foldable aluminum alloy stem

Handlebar: Adjustable straight aluminum alloy handlebar

Crankset: 42T, Custom alloy forged crankarms

Cassette: 16T, Single speed

Chain: E-bike optimized

Saddle: Body geometry comfortable sponge saddle

Seat post: Aluminum alloy

Pedals: Folding pedals

Accessories: Kickstand, fenders, tools

Folding size: 60*60*35 cm

Max load: 130 kg

Net weight: 17 kg

Gross weight: 22 kg

Carton size: 127*22*64 cm
