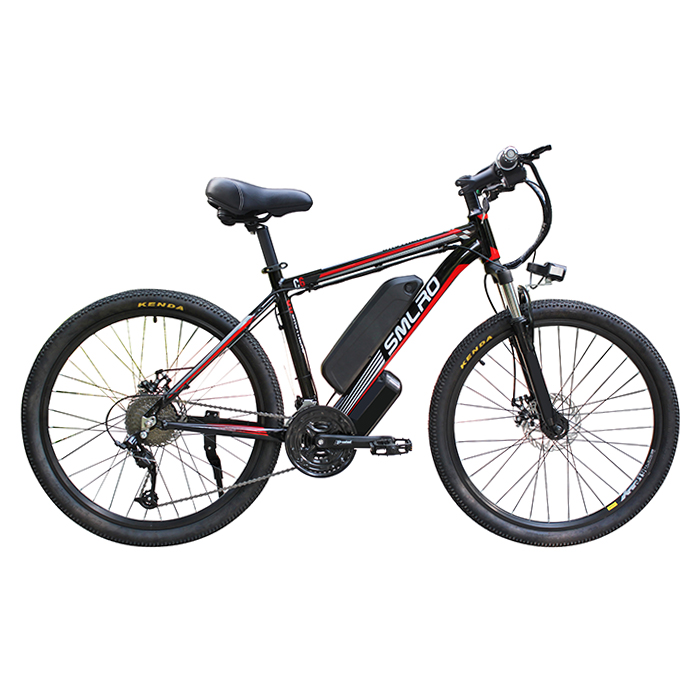

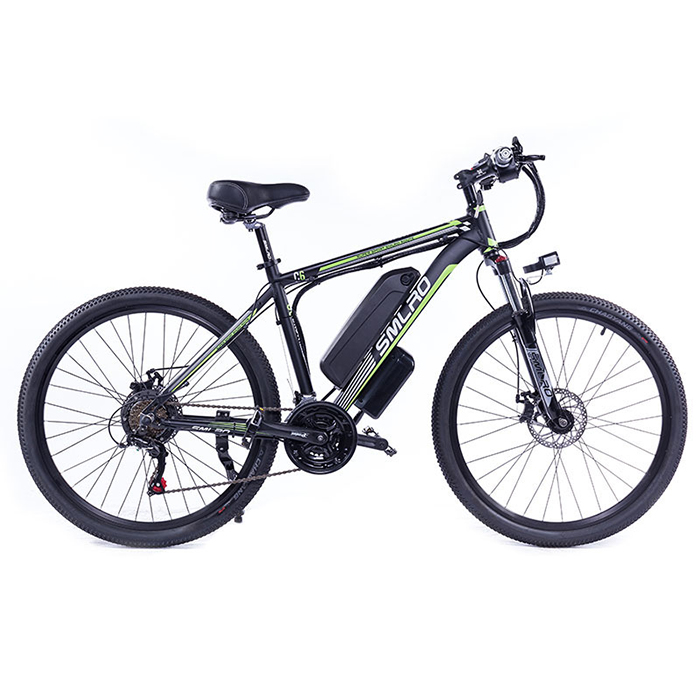

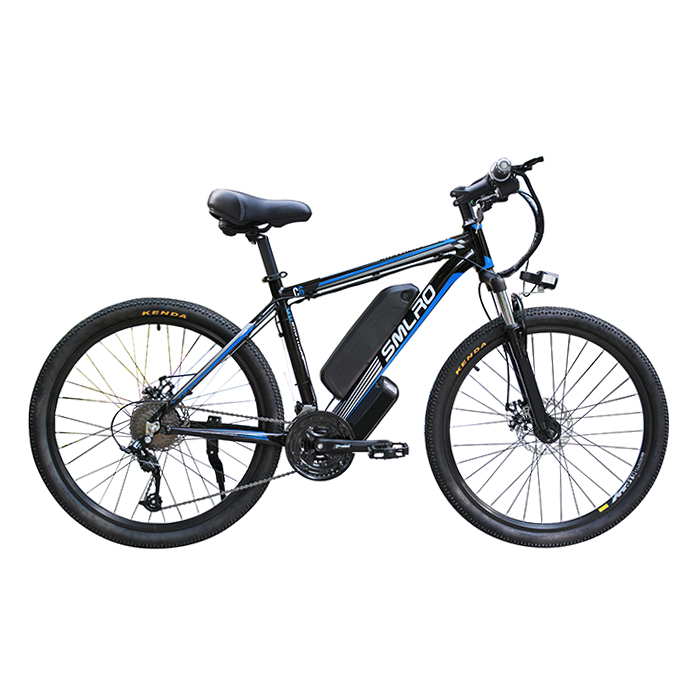

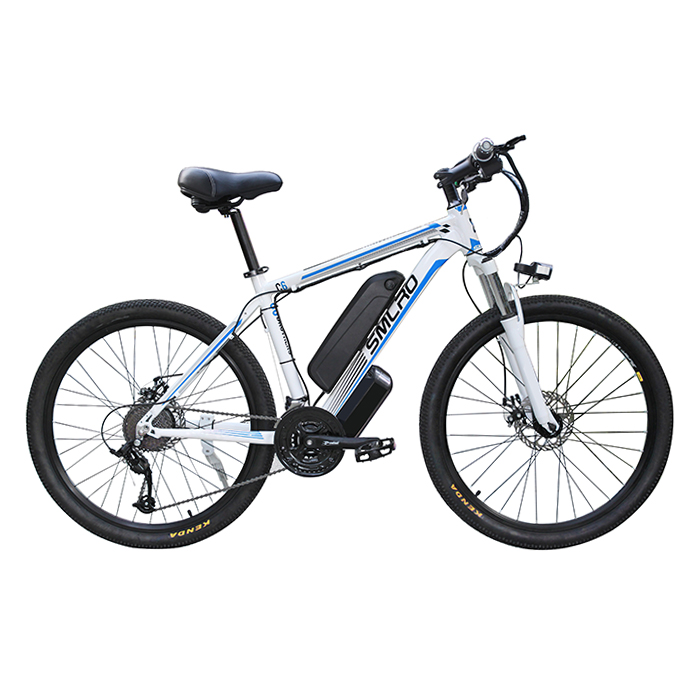

C6 29ER

SMLRO Ebike Product Specifications

Category: Electric mountain bike

Model: C6 29ER

Colors: Black/blue, black/red, black/green, white/blue, white/red

Frame: 6061 aluminum alloy

Front fork: SMLRO aluminum alloy suspension fork

Driving modes: Pure electric(5 shifts), Electric assist(5 shifts), Pure human riding

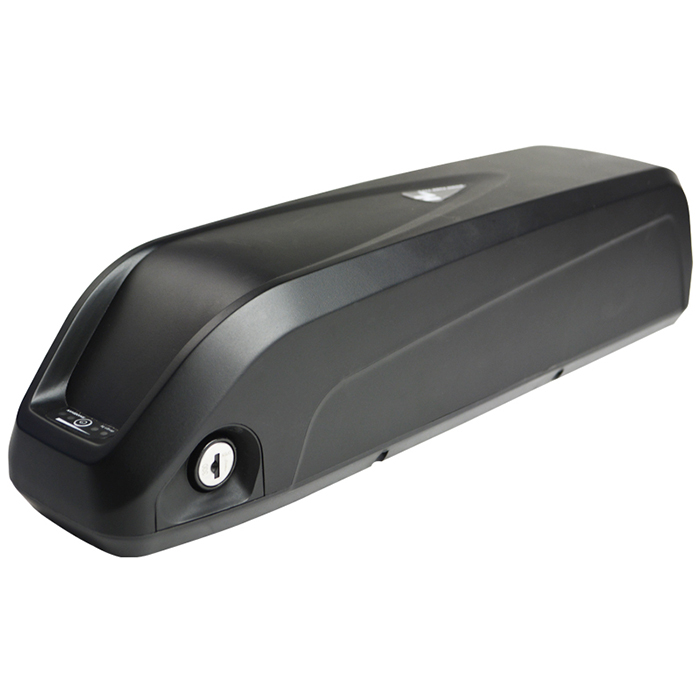

Battery: Removable lithium-ion battery(CE, ROHS, UL)

Capacity: 48V 13Ah

Range in electric mode: 60 km

Range in electric assist mode: 90 km

Charging methods: Charge directly or take the battery out for charging

Charger: Local standard input 100~240V AC, output 54.6 2A, overvoltage, overcurrent, short circuit protection

Charging time: 6-7 hours

Motor: Rear drive 48V 350W/500W/750W/1000W high speed, brushless, toothed, low resistance and low noise motor

Controller: Intelligent sine wave integrated IC control chip

Accelerator: Rotatable throttle grip/Pedal assist

Headlight & Horn: Integrated LED headlight & horn

Meter: LCD display control instrument

Display function: MPH, miles, electricity, shift, error code, etc

Cruise control: 4 levels cruise control

Protection level: IP54

Max speed: 35 km/h

Gears: 21 speed

Shifter levers: Shimano SL-TX30

Front derailleur: Shimano FD-TZ31

Rear derailleur: Shimano RD-TZ500

Cassette: Shimano MF-TZ500, 14-28T

Crankset: Prowheel aluminum alloy 24*34*42T

Chain: E-bike optimized, 21 speed

Rims: 29" aluminum alloy bouble-deck

Tires: KENDA 29*1.95" MTB tires

Spokes: High rigidity steel

Brake levers: Aluminum alloy, cut off the power to the motor when braking

Brakes: Mechanical disc brakes

Handlebar: SMLRO aluminum alloy straight handlebar

Stem : Aluminum alloy

Headset: Aluminum alloy CNC

Saddle: Body geometry comfortable sponge saddle

Seat post: Aluminum alloy

Pedals: Aluminum alloy

Accessories: Kickstand, tools

Max load: 150 kg

Net weight: 23 kg

Gross weight: 29 kg
