S9

SMLRO Ebike Product Specifications

Category: Electric city bike

Model: S9

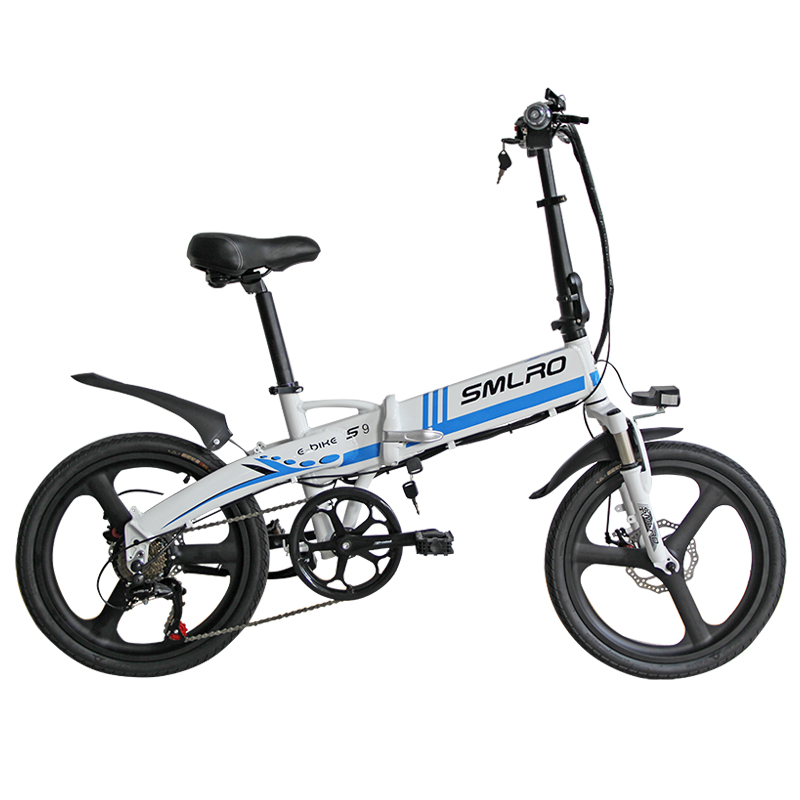

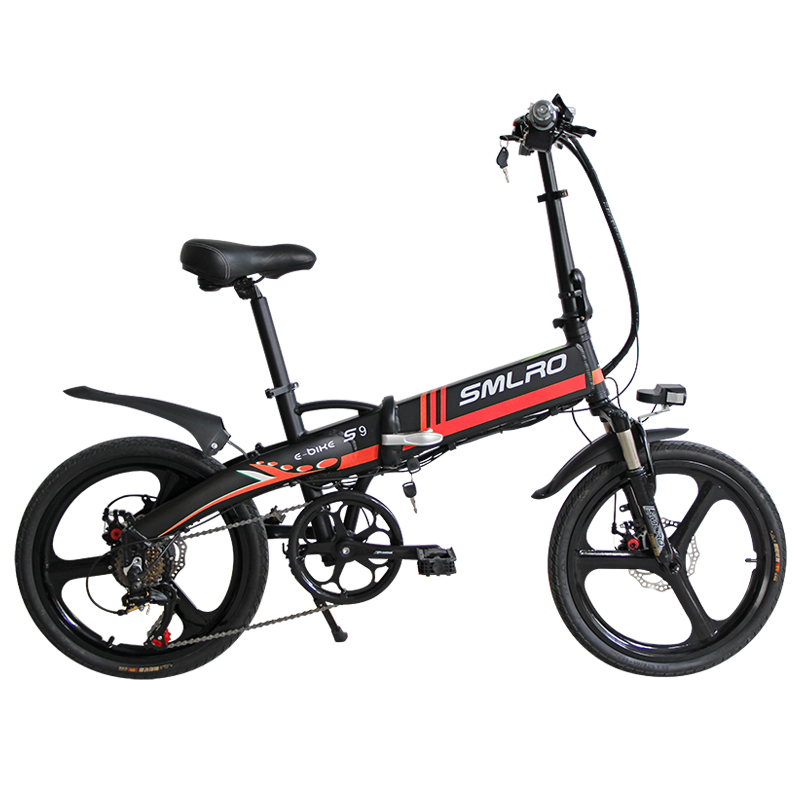

Colors: Black/red, White/blue, black/green

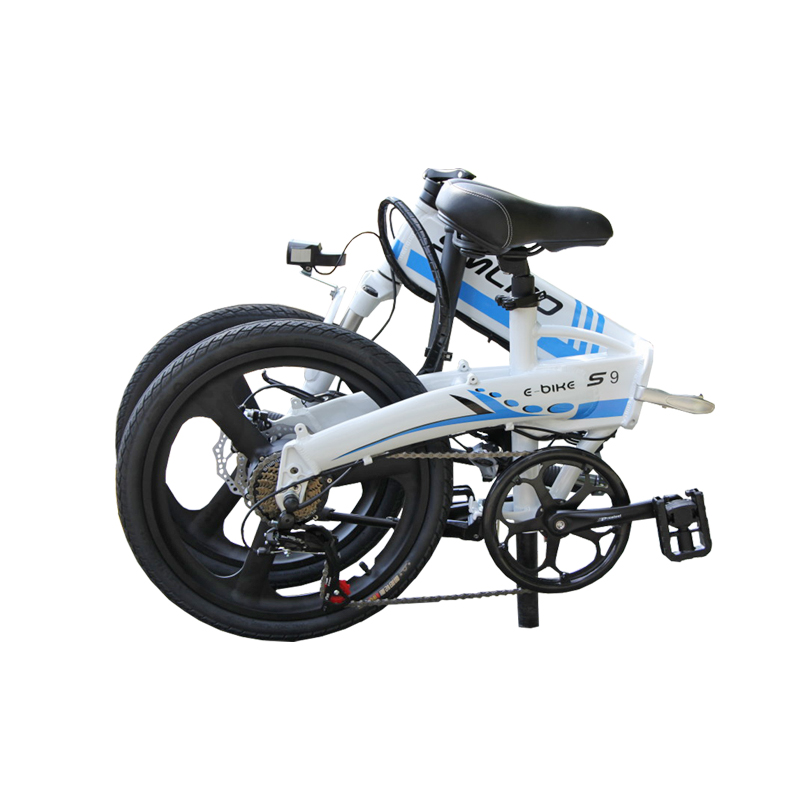

Frame: 6061 aluminum alloy foldable frame

Front fork: SMLRO aluminum alloy shoulders suspension fork

Driving modes: Pure electric(5 shifts), Electric assist(5 shifts), Pure human riding

Battery: Removable lithium-ion battery (CE, ROHS, UL, PSE, KC, etc) 48V 10Ah

Range in pure electric mode: 45 km

Range in electric assist mode: 70 km (ASSIST 1)

Charging methods: Charge directly or take the battery out for charging

Charger: Local standard input 100~240V AC, output 54.6V 2A, overvoltage, overcurrent, short circuit protection

Charging time: 4-5 hours

Motor: Rear drive 48V 350W high speed, brushless, toothed, low resistance and low noise motor

Max torque: 60 N·m

Controller: Intelligent sine wave integrated IC control chip

Meter: LCD display control instrument

Display function: MPH, miles, electricity, shift, error code, etc

Cruise control: 4 levels cruise control

Accelerator: Rotatable throttle grip /Pedal assist

Headlight & Horn: Integrated LED headlight & horn

USB charging port: General charging port

Protection level: IP54

Max speed: 28 km/h

Gears: 7 speed

Shifter lever: Shimano SL-TX50-7R

Rear derailleur: Shimano RD-TZ500

Cassette Shimano: MF-TZ500, 14-28T, 7-speed

Crankset: Prowheel aluminum alloy, 52T

Chain: E-bike optimized, 7-speed

Rims: 20" magnesium alloy integrated rims

Tires: Chaoyang 20*1.75"

Brake levers: Aluminum alloy, cut off the power to the motor when braking

Brakes: Mechanical disc brakes

Handlebar: Adjustable straight aluminum alloy

Stem: Foldable aluminum alloy

Saddle: Body geometry comfortable sponge saddle

Seat post: Aluminum alloy

Pedals: Foldable pedals

Accessories: Kickstand, fenders, tools

Max load: 150 kg

Net weight: 23 kg

Gross weight: 29 kg

Carton size: 138*22*77 cm
