  • Frame: 6061 Aluminium alloy
  • Wheels: 20
  • Battery: Removable lithium-ion battery
  • Gears: 7 speed
  • Product description:

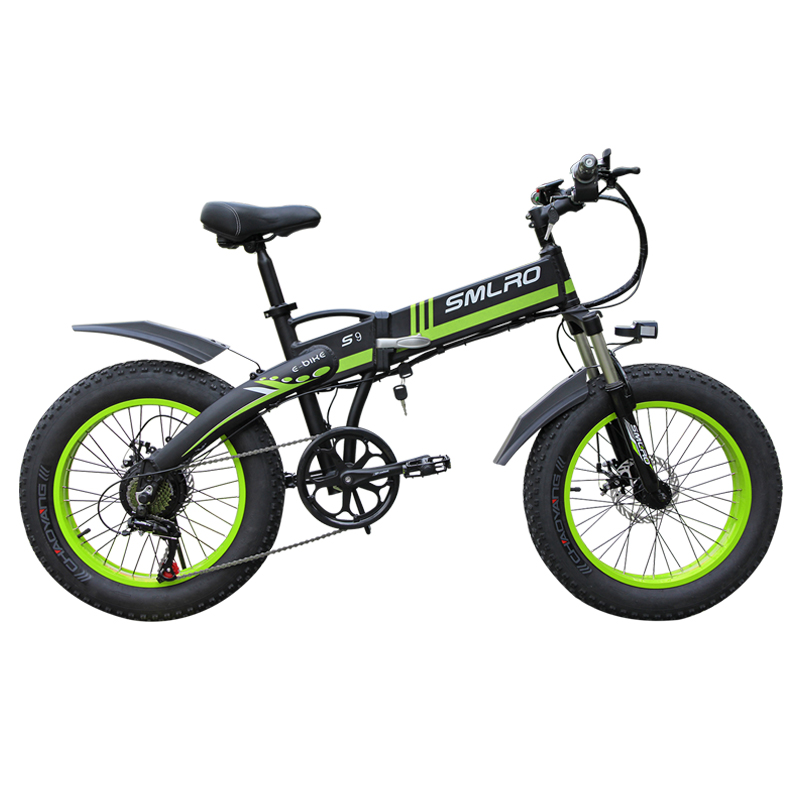

SMLRO Ebike Product Specifications

Category: Electric fat bike

Model: S9F

Colors: White/blue, black/green, black/red

Frame: 6061 aluminum alloy foldable frame

Front fork: SMLRO aluminum alloy suspension fork

Driving modes : Pure electric(5 shifts), Electric assist(5 shifts), Pure human riding

Battery: Removable lithium-ion battery(CE, ROHS, UL, PSE, KC, etc)48V 10Ah

Range in electric mode: 40 km

Range in electric assist mode: 60 km (ASSIST 1)

Charging methods: Charge directly or take the battery out for charging

Charger: Local standard input 100~240V AC, output 54.6V 2A, overvoltage, overcurrent, short circuit protection

Charging time: 4-5 hours

Motor: Rear drive 48V 350W/500W/750W/1000W high speed, brushless, toothed, low resistance and low noise motor

Max torque: 60 N·m

Controller: Intelligent sine wave integrated IC control chip

Meter: LCD display control instrument

Display function: MPH, miles, electricity, shift, error code, etc

Cruise control: 4 levels cruise control

Accelerator: Rotatable throttle grip/Pedal assist

Headlight & Horn: Integrated LED headlight & horn

USB charging port: General charging port

Protection level: IP54

Max speed: 30 km/h

Gears: 7 speed

Shifter lever: Shimano SL-TX50-7R

Rear derailleur : Shimano RD-TZ500

Cassette: Shimano MF-TZ500, 14-28T, 7 speed

Crankset: Prowheel aluminum alloy, 52T

Chain: E-bike optimized, 7 speed

Front hub: Quick release aluminum alloy hub

Rims: Aluminum alloy

Tires: Chaoyang 20*4.0" fat tires

Spokes: High rigidity steel

Brake levers: Aluminum alloy, cut off the power to the motor when braking

Brakes: Mechanical disc brakes

Handlebar: Aluminum alloy for fat bike

Stem: Aluminum alloy

Headset: Aluminum alloy CNC

Saddle: Body geometry comfortable sponge saddle

Seat post: Aluminum alloy

Pedals: Aluminum alloy pedals

Accessories: Kickstand, fenders, tools

Max load: 150 kg

Net weight: 24 kg

Gross weight: 31 kg

Carton size: 148*32*80 cm
