BULL

SMLRO Ebike Product Specifications

Category: Electric fat bike

Model: BULL

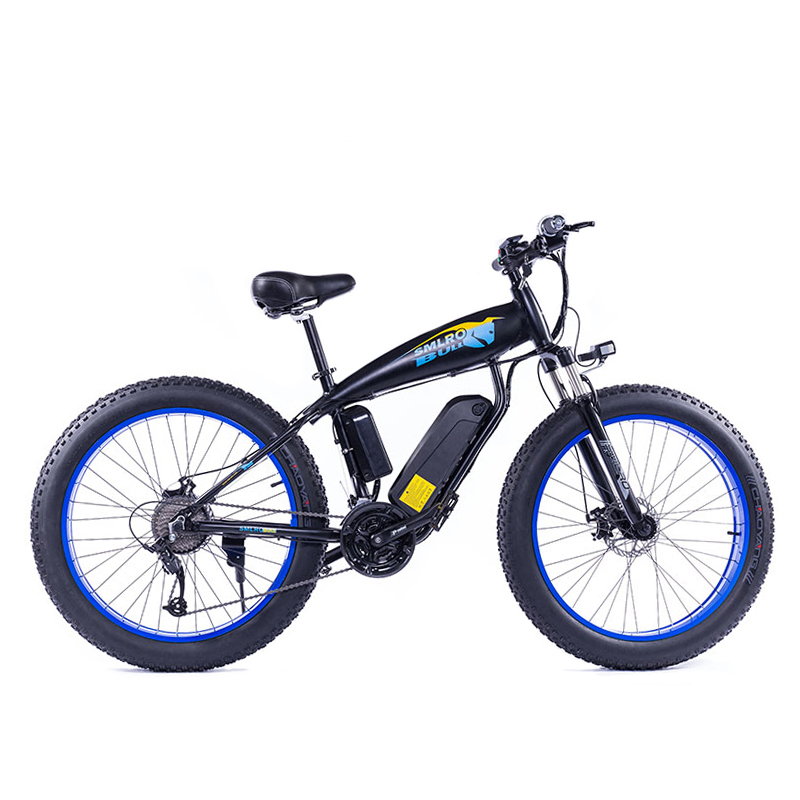

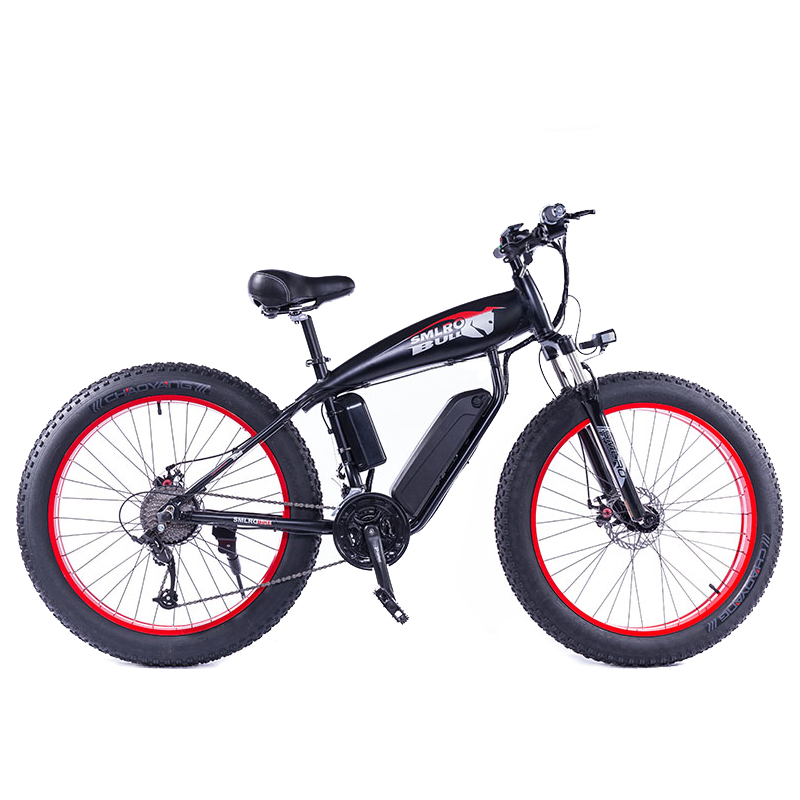

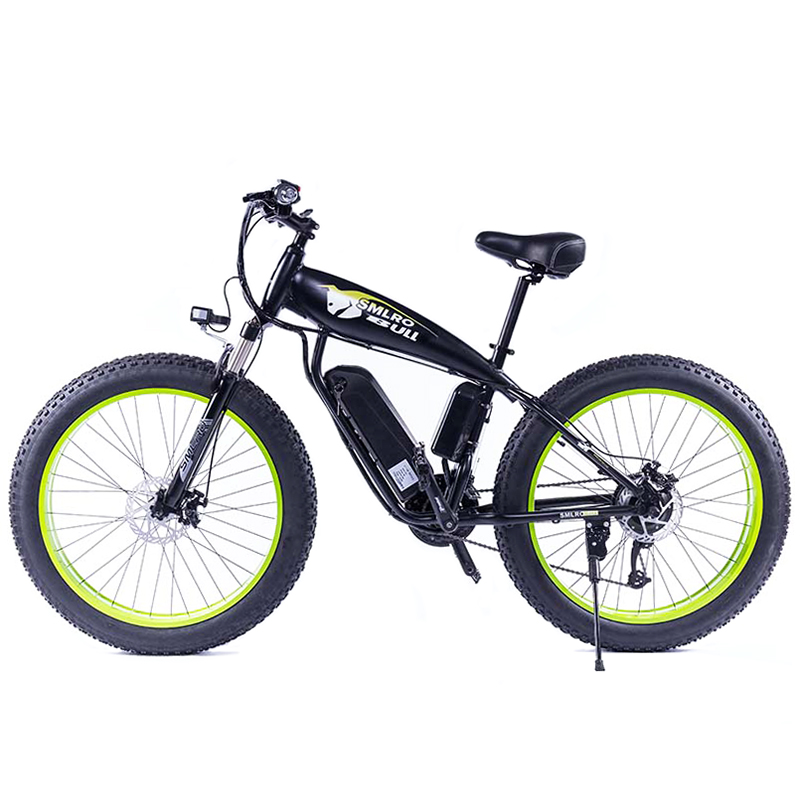

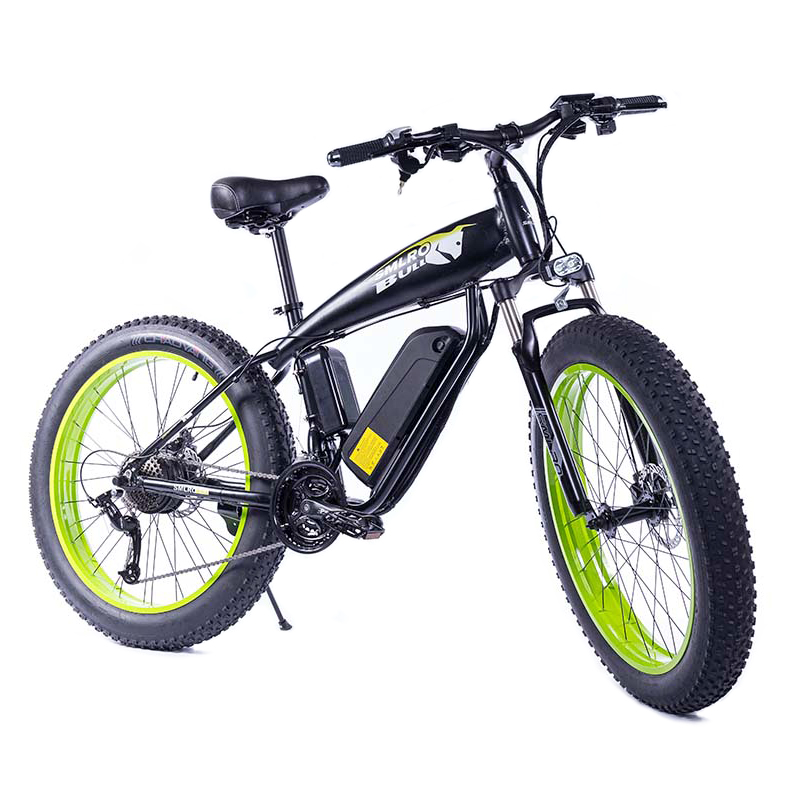

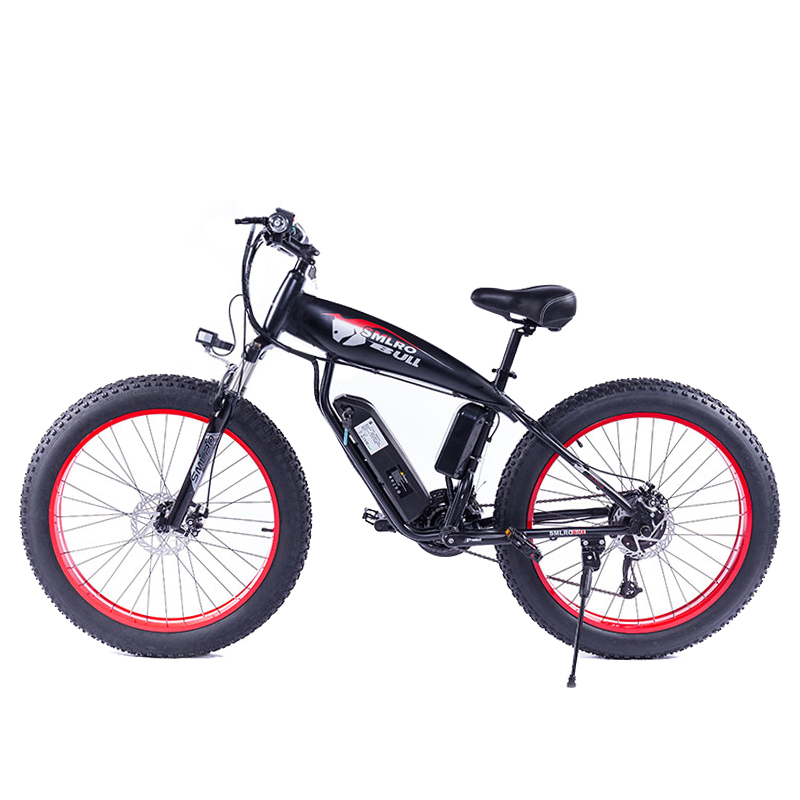

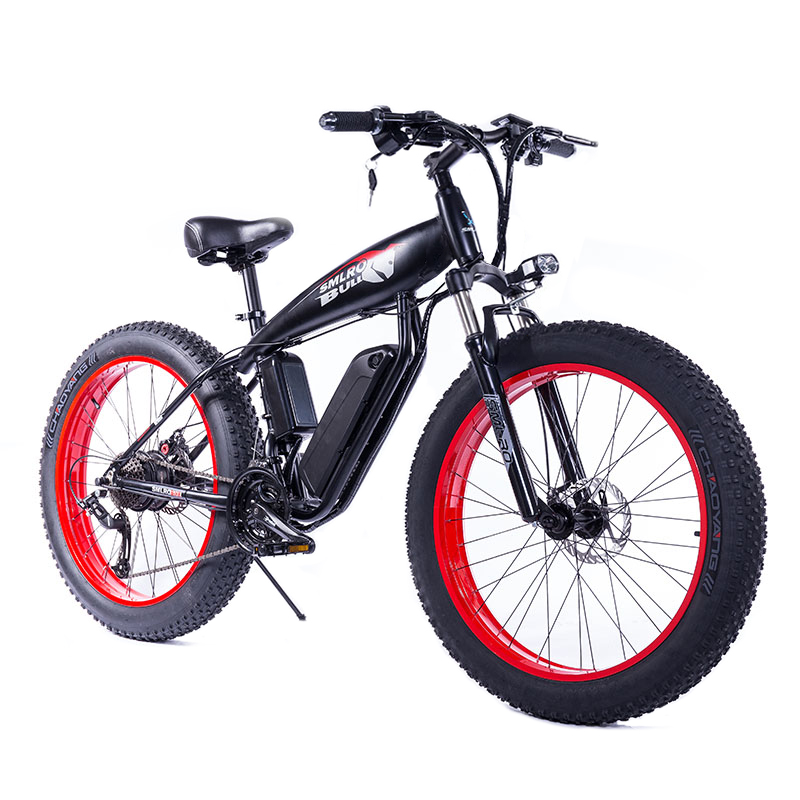

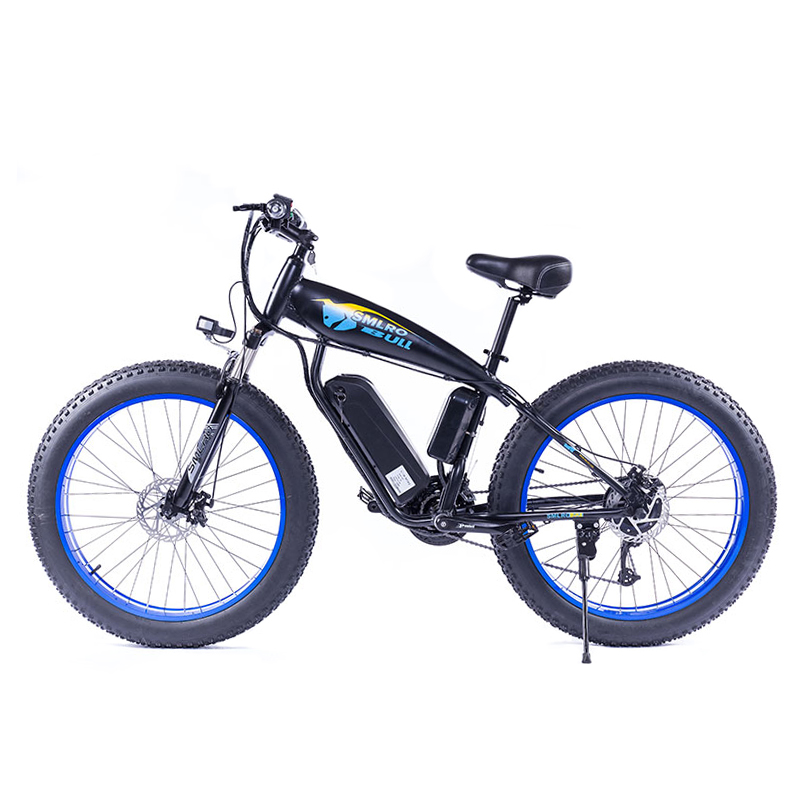

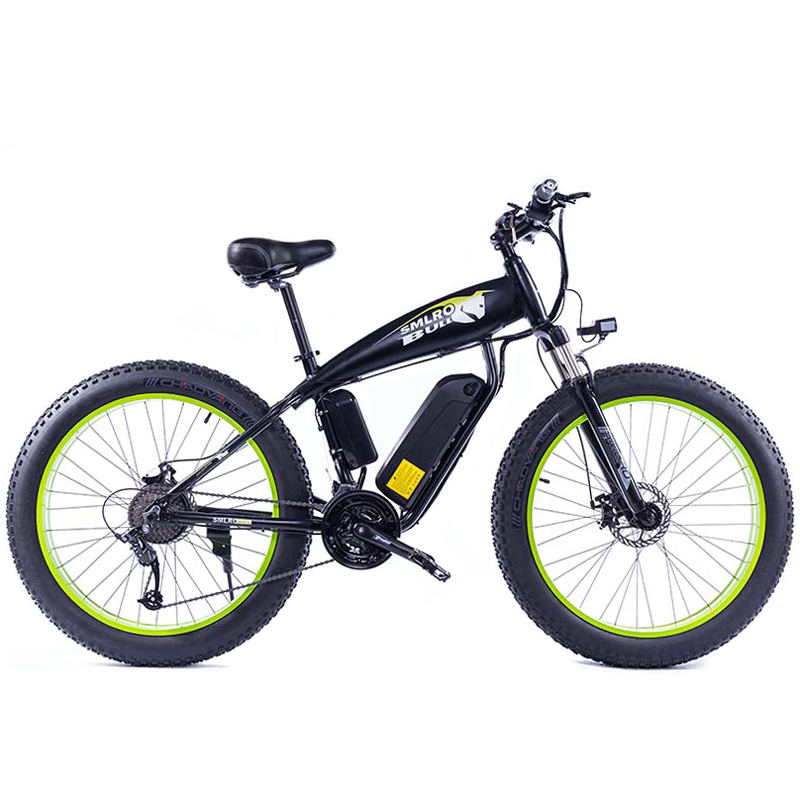

Colors: Black/red, black/blue, black/green

Frame: 6061 aluminum alloy

Front fork: SMLRO aluminum alloy suspension fork, lockout

Driving mode: Pure electric(5 shifts), Electric assist(5 shifts), Pure human riding

Battery: Removable lithium-ion battery(CE, ROHS, UL, PSE, KC, etc)

Capacity: 48V 10Ah, 48V 13Ah

Range in electric mode: 45 km with battery 48V 10Ah, 55 km with battery 48V 13Ah

Range in electric assist mode: 60 km with battery 48V 10Ah, 75 km with battery 48V 13Ah

Charging methods: Charge directly or take the battery out for charging

Charger: Local standard input 100~240V AC, output 54.6V 2A, overvoltage, overcurrent, short circuit protection

Charging time: 5-6 hours, 6-7 hours

Motor: Rear drive 48V 350W/500W/750W/1000W high speed, brushless, toothed, low resistance and low noise motor

Max torque: 60 N·m

Controller: Intelligent sine wave integrated IC control chip

Accelerator: Rotatable throttle grip/Pedal assist

Headlight & Horn: Integrated LED headlight & horn

Meter: LCD display control instrument

Display function: MPH, miles, electricity, shift, error code, etc

Cruise control: 4 levels cruise control

Protection level: IP54

Max speed: 40 km/h

Gears: 21 speed

Shifter levers: Shimano SL-TX30

Front derailleur: Shimano FD-TZ31

Rear derailleur: Shimano RD-TZ500

Cassette: Shimano MF-TZ500, 14-28T, 7 speed

Crankset: Prowheel aluminum alloy 24*34*42T

Chain: E-bike optimized, 21 speed

Front hub: Quick release aluminum alloy hub

Rims : Aluminum alloy

Tires : Chaoyang 26*4.0" fat tires

Spokes: High rigidity steel

Brake levers: Aluminum alloy, cut off the power to the motor when braking

Brakes: Mechanical disc brakes

Handlebar: Aluminum alloy for fat bike

Stem: Aluminum alloy

Headset: Aluminum alloy CNC

Saddle: Body geometry comfortable sponge saddle

Seat post: Aluminum alloy

Pedals: Aluminum alloy

Accessories: Kickstand, tools

Max load: 150 kg

Net weight: 25 kg, 26 kg

Gross weight: 32 kg, 33 kg

Carton size: 148*32*80 cm
