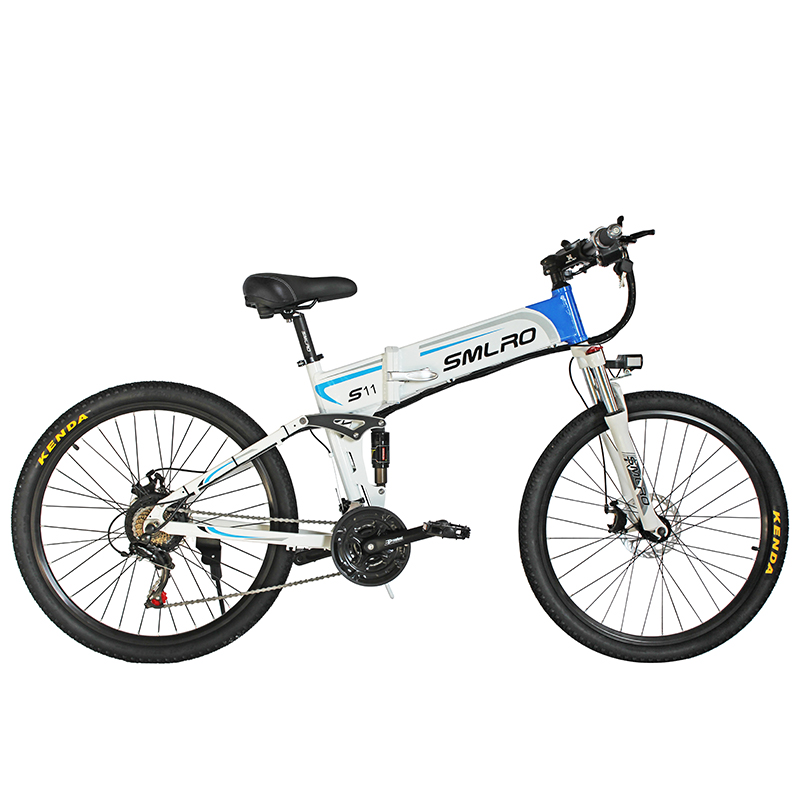

SMLRO Ebike Product Specifications


Category: Electric mountain bike

Brand: SMLRO

Model: S11

Colors: White/blue, black/green, black/red

Frame: 6061 aluminum alloy full suspension foldable frame

Front fork: SMLRO aluminum alloy suspension fork, lockout

Rear shock: Four-bar linkage shock

Driving mode: Pure electric(5 shifts), Electric assist(5 shifts), Pure human riding

Battery: Removable lithium-ion battery(CE, ROHS, UL, PSE, KC, etc)48V 10Ah

Range in electric mode: 50 km

Range in electric assist mode: 70 km (ASSIST 1)

Charging methods: Charge directly or take the battery out for charging

Charger: Local standard input 100~240V AC, output 54.6V 2A, overvoltage, overcurrent, short circuit protection

Charging time: 4-5 hours

Motor: Rear drive 48V 350W/500W/750W/1000W high speed,brushless,toothed,low resistance and low noise motor

Max torque: 60 N·M

Controller: Intelligent sine wave integrated IC control chip

Accelerator: Rotatable throttle grip/Pedal assist

Headlight & Horn: Integrated LED headlight & horn

USB charging port: General charging port

Meter: LCD display control instrument

Display function: MPH, miles, electricity, shift, error code, etc

Cruise control: 4 levels cruise control

Protection level: IP54

Max speed: 35 km/h

Gears: 21 speed

Shifter levers: Shimano SL-TX30

Front derailleur: Shimano FD-TZ31

Rear derailleur: Shimano RD-TZ500

Cassette: Shimano MF-TZ500, 14-28T, 7-speed

Crankset: Prowheel aluminum alloy 24*34*42T

Chain: E-bike optimized, 21-speed

Front hub: Aluminum alloy hub

Rims : 26" aluminum alloy bouble-deck

Tires: KENDA 26*1.95" MTB tires

Spokes: High rigidity steel

Brake levers: Aluminum alloy, cut off the power to the motor when braking

Brakes: Mechanical disc brakes

Handlebar: Aluminum alloy straight handlebar

Stem: Aluminum alloy

Headset: Aluminum alloy CNC

Saddle: Body geometry comfortable sponge saddle

Seat post: Aluminum alloy

Pedals: Aluminum alloy pedals for MTB

Accessories: Kickstand, tools

Folding size: 85*65*40 cm

Max load: 150 kg

Net weight: 23 kg

Gross weight: 29 kg

Carton size: 145*22*77 cm
